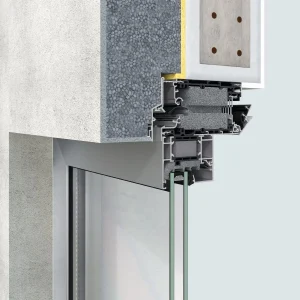

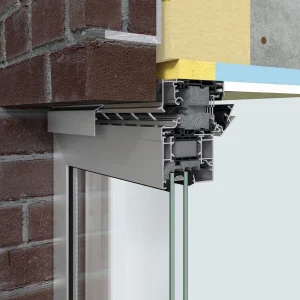

Ventilation System VentoFrame Asonic

A high level of system flexibility due to nine device versions: optimum adaptation to the project simplifies planning and increases cost-effectiveness
A discreet design and a wide range of coating options ensure complete design freedom
Planning support from Schüco: help with product selection creates planning reliability and reduces the amount of work required for planning
Cost-effective ventilation for the entire residential unit

Technical Specification	Value
Min. Unit Width	450 mm
Additional Face Width	65 mm
Filter Class of Incoming Air	Optional
For System Basic Depths	50 – 120 mm
Dimensions (w x h x d)	(450-6000) x 65 x (50-202) mm
Operating Limit	-20 °C
Watertightness	E 1200
Max. Standardized Sound Level Difference Dn,e,w (closed)	51 dB(A)
Max. Standardized Sound Level Difference Dn,e,w (open)	42 dB(A)
Max. Sound Reduction Index Rwp (closed)	41 dB(A)
Max. Sound Reduction Index Rwp (open)	33 dB(A)
Power Supply	–
Regulation	Self-regulating by means of pressure difference
Operating Type	Pole, Rope
Installation Option	Horizontal, Surface-mounted
Function	Ventilation
Installation Type	Add-on installation
